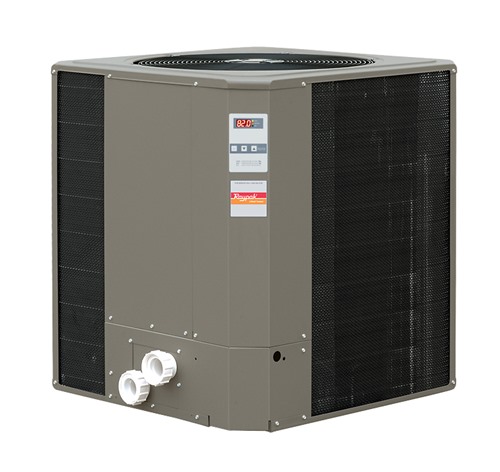

Classic Series Heat Pumps, R5350ti, R6350ti, R8350

Raypak is proud to introduce our new heat pump product line. Every Raypak heat pump comes standard with a Titanium heat exchanger. The Classic Series heat pumps have been designed to meet the exacting needs of the pool and spa professional.  Raypak offers a feature-rich entry-level heat pump, the Classic Series Analog, which provides rock-solid performance at an affordable price. The Classic Series also offers a top-of-the-line Digital product for the customer who demands the best. And for those big jobs and high-end pools, the Raypak 8350ti is the heat pump of choice.

BASIC DATA
Model Number
Performance per AHRI 1160, at 80F air, 63% RH, 80F water Performance at 80F air, 80% RH, 80F water
Heat Output in BTUH
C.o.P Input kW
Heat Output in BTUH
C.o.P Input kW
R5350ti 92,000 6.0 4.3 95,000 6.2 4.3
R6350ti 113,000 6.0 5.5 117,000 6.2 5.5
R8350ti 125,000 5.2 7.0 133,000 5.5 7.0



Features:

Cabinet
  • Exclusive DuraSteel™ Powder-Coated Cabinet
    Polyester powder-coated, non-corrosive cabinet is more durable than plastic heat pump cabinets. Same rugged steel construction used by all the major air conditioner manufacturers.
Evaporator Coils
  • Large Air Coils
    Raised lanced-fin design maximizes heating at lower temperatures. Raypak engineered coils are highly optimized to meet our specific design requirements. From the proper fins per inch to advanced distribution circuiting. We are the only heat pump pool heater company to actually manufacture our own coils.
  • Venturi Fan Cowling
    High-capacity 3000-cfm fan provides unrestricted air flow for better heating. Precision engineered and manufactured cabinet design eliminates unwanted air gaps. This means more air over the coil which translates to greater efficiency
Compressor
  • Scroll Compressor
    Scroll compressors are quiet and efficient compared to piston-type compressors. They provide higher efficiency, lower sound levels, superior durability and unsurpassed reliability. The unique design of a scroll compressor actually wears in over time, not out!
  • Sound Isolation Pads
    Prevents sound transfer to equipment pad and elevates the base pan to improve water drainage. Its the little details like this that make Raypak products stand out from the crowd.
Heat Exchanger
  • Spiral Titanium Tube
    Our spiral titanium-tube heat exchanger provides a corrosion-free waterway that can withstand the abuses of harsh pool chemistry. The spiral tube helps reduce deposit build-up and increases efficiency by performing a “scoop-and-lift” action.
  • Internal Bypass Valving
    Automatically compensates for normal day-to-day changes in your pool’s hydraulics, maximizing heat transfer efficiency.
  • Plumbing Connections
    Offset 2” PVC union connections are included for ease of installation.
Controls - Analog
  • Dual Thermostats
    Allows separate pool and spa temperature settings.
  • Exclusive Direct-Set Thermostat
    Our direct-set thermostat is easy to use; the temperature settings are right on the dial.  This eliminates the guesswork involved compared with some dials that use a gradient or blue-to-red “swoosh”.
  • Remote/Local Switch
    Compatible with the latest automated pool control systems. Exclusive remote/local switch ends the conflict between outside control systems and the heat pump control system. Great for troubleshooting.
  • Diagnostic Lights
    Six LED diagnostic lights keep you informed about the heat pump pool heater operation Power on, water flow, heat demand, compressor delay, defrost active, low refrigerant pressure.
Controls - Digital
  • Pool/Spa Control
    Your digital heat pump pool heater can be set to have a different target temperature for your pool and your spa. This allows you to dial in just the right spa temperatures and never have to adjust it again. The pool can be set to a lower, more energy saving temperature.
  • Remote Compatible
    The digital heat pump pool heater can be easily controlled by most two-wire and three-wire remote systems.
  • On Board Diagnostics
    Tells the homeowner if there is a problem. Provides the service technician with detailed diagnostic information.
