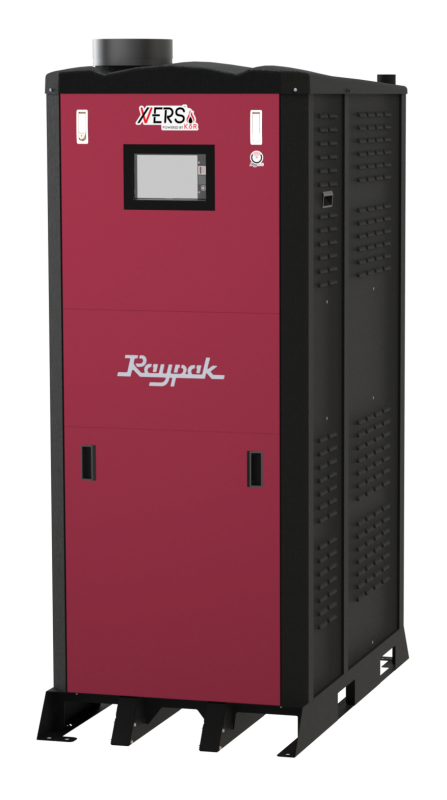

XVers KOR

1007-4007

Home / Products / Commercial Water Heating / Hydronic Boilers / XVers KOR

Powered by KOR Heat Exchanger

When our team set out to design and build XVers + KŌR we made sure we listened to what our customers wanted and needed first. Then we looked at how we could raise the bar for commercial boilers, from footprint and aesthetics to functionality and ease of servicing. This meant XVers + KŌR had to be one of the smartest and most compact condensing fire tube boilers on the market.

Powered by Raypak’s new high-efficiency stainless steel KŌR fire tube heat exchanger, XVers + KŌR packs more heat into a smaller footprint. Manufactured by state-of-the-art robotic machinery with durable stainless steel, high performance and long-term reliability are at the KŌR of Raypak’s newest XVers.

Talk To Sales

Documents

Documents

Document Type:

Product Models	Product Category	Title	Document Number	Document Type	SEOURL	Language	SeqNum
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	XVers KOR H 1007-4007 I&O Product Manual (English)	241849	Product Manual	XVers-KOR-H-1007-4007-I&O-Product-Manual-(English)	EN	15
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	XVers KOR 1007-4007 Product Submittal	241948	Submittal	XVers-KOR-1007-4007-Product-Submittal	EN	16
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	XVers KOR 1007-4007 Brochure	1100.15-XVers+Powered+by+KOR_web	Brochure	XVers-KOR-1007-4007-Brochure	EN	1
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	Raypak BioTherm Case Study	BioTherm-case	Case Study	Raypak-BioTherm-Case-Study	EN	2
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	XVers KOR 1007-4007 Specifications	242001	Specifications	XVers-KOR-1007-4007-Specifications	EN	3
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	Master Spec	Master Spec	Specifications	Master-Spec	EN	4
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	Dynamic Protection Brochure	1100.15-Dynamic+Protection_web	Brochure	Dynamic-Protection-Brochure	EN	5
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	HO2T Track Service Instructions Manual	100-10000507	Manual	HO2T-Track-Service-Instructions-Manual	EN	6
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	XVers KOR 1007-4007 Revit	1100.15	Revit	XVers-KOR-1007-4007-Revit	EN	7
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	Xvers KOR Efficiency Curve	XVers-Efficiency-Curves	Efficiency Curves	Xvers-KOR-Efficiency-Curve	EN	8
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	VERSA IC Control System Brochure	1100.15-VERSA-IC	Brochure	VERSA-IC-Control-System-Brochure	EN	9
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	VERSA IC, Raypak Touch Screen Start Guide, 241630	241630	Guide	VERSA-IC,-Raypak-Touch-Screen-Start-Guide,-241630	EN	10
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	Versa IC I&O Manual (English)	241493	Manual	Versa-IC-I&O-Manual-(English)	EN	11
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	Raymote I&O Manual (English)	241788	Manual	Raymote-I&O-Manual-(English)	EN	12
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	Raymote Control Brochure	1100.15-Raymote_web	Brochure	Raymote-Control-Brochure	EN	13
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	Raymote Quick Start Guide	241984	Guide	Raymote-Quick-Start-Guide	EN	14
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	ProtoNode RER & LER I&O Instructions Manual, 241515	241515	Manual	ProtoNode-RER-&-LER-I&O-Instructions-Manual,-241515	EN	17
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	Commercial Product Portfolio Brochure	1100.14	Brochure	Commercial-Product-Portfolio-Brochure	EN	18
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	Commercial Product Catalog Brochure	1100.15	Brochure	Commercial-Product-Catalog-Brochure	EN	19
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	Taco Pumps Replacement Parts IPL	9300.1	IPL	Taco-Pumps-Replacement-Parts-IPL	EN	20
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	XVers KOR H 1007-4007 I&O Product Manual (French)	241849-FR	Product Manual	XVers-KOR-H-1007-4007-I&O-Product-Manual-(French)	FR	21
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	Versa IC I&O Manual (French)	241493-FR	Manual	Versa-IC-I&O-Manual-(French)	FR	22
1007, 1257, 2007, 3007, 3507, 4007	Hydronic Boilers	Raymote I&O Manual (French)	241788-FR	Manual	Raymote-I&O-Manual-(French)	FR	23
				Document Type

MODEL SIZES

Reset Compare

- XVers KOR
  H7-1007
- Input Rate
  999 MBTU/h
- Thermal Efficiency
  95.3%
- Sustainability Standout
- Condensing
- Indoor & Outdoor
- ASME
- Cascade
  Up to 8
- Energy Type
  Gas
- Turndown
  10:1
- Venting
  Category IV
- Voltage
  120/208/240/480/600VAC
- varies
- Max Water Flow
  200 GPM
- XVers KOR
  H7-1257
- Input Rate
  1,250 MBTU/h
- Thermal Efficiency
  95.7%
- Sustainability Standout
- Condensing
- Indoor & Outdoor
- ASME
- Cascade
  Up to 8
- Energy Type
  Gas
- Turndown
  12:1
- Venting
  Category IV
- Voltage
  120/208/240/480/600VAC
- varies
- Max Water Flow
  240 GPM
- XVers KOR
  H7-1507
- Input Rate
  1,500 MBTU/h
- Thermal Efficiency
  95.1%
- Sustainability Standout
- Condensing
- Indoor & Outdoor
- ASME
- Cascade
  Up to 8
- Energy Type
  Gas
- Turndown
  15:1
- Venting
  Category IV
- Voltage
  120/208/240/480/600VAC
- varies
- Max Water Flow
  240 GPM
- XVers KOR
  H7-2007
- Input Rate
  1,990 MBTU/h
- Thermal Efficiency
  95.2%
- Sustainability Standout
- Condensing
- Indoor & Outdoor
- ASME
- Cascade
  Up to 8
- Energy Type
  Gas
- Turndown
  10:1
- Venting
  Category IV
- Voltage
  120/208/240/480/600VAC
- varies
- Max Water Flow
  240 GPM
- XVers KOR
  H7-2507
- Input Rate
  2,499 MBTU/h
- Thermal Efficiency
  95%
- Sustainability Standout
- Condensing
- Indoor & Outdoor
- ASME
- Cascade
  Up to 8
- Energy Type
  Gas
- Turndown
  8:1
- Venting
  Category IV
- Voltage
  208/240/480/600VAC
- varies
- Max Water Flow
  240 GPM
- XVers KOR
  H7-3007
- Input Rate
  3,000 MBTU/h
- Thermal Efficiency
  95%
- Sustainability Standout
- Condensing
- Indoor & Outdoor
- ASME
- Cascade
  Up to 8
- Energy Type
  Gas
- Turndown
  10:1
- Venting
  Category IV
- Voltage
  208/240/480/600VAC
- varies
- Max Water Flow
  240 GPM
- XVers KOR
  H7-3507
- Input Rate
  3,500 MBTU/h
- Thermal Efficiency
  95%
- Sustainability Standout
- Condensing
- Indoor & Outdoor
- ASME
- Cascade
  Up to 8
- Energy Type
  Gas
- Turndown
  9:1
- Venting
  Category IV
- Voltage
  208/240/480/600VAC
- varies
- Max Water Flow
  240 GPM
- XVers KOR
  H7-4007
- Input Rate
  4,000 MBTU/h
- Thermal Efficiency
  94.5%
- Sustainability Standout
- Condensing
- Indoor & Outdoor
- ASME
- Cascade
  Up to 8
- Energy Type
  Gas
- Turndown
  10:1
- Venting
  Category IV
- Voltage
  208/240/480/600VAC
- varies
- Max Water Flow
  240 GPM
